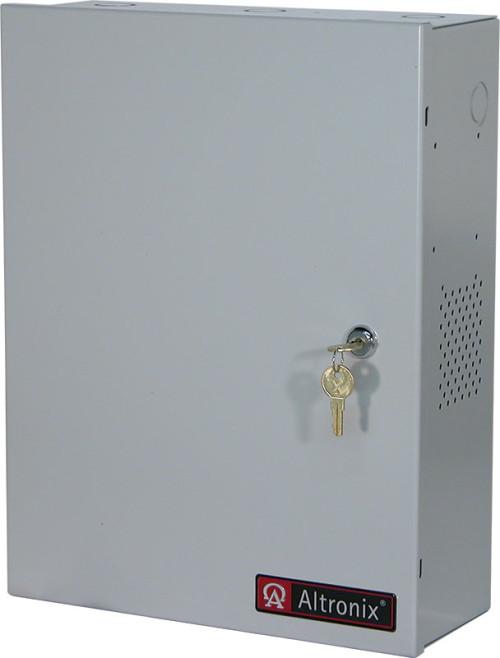

BC400

Enclosure, 15.5"H x 12"W x 4.5"D, Grey, 18 Gauge, Indoor

Altronix BC400 is a UL Recognized NEMA 1 Rated power supply/battery enclosure that can accommodate a wide variety of Altronix power supplies, sub-assemblies, and accessories. Altronix enclosures feature ample knockouts that are suitable for 0.75” and 1” conduits.

Specifications

  • Features
    • 18 Gauge steel enclosure
    • Ample knockouts accommodating either 0.75” or 1” conduits for convenient access
    • Includes camlock and two self-tapping screws to secure door
    • Fits two (2) 12VDC/12AH batteries.
    • NEMA 1 enclosure.

Agency Listings


UL Recognized

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
  • 1.125" and 1.375" combination knockouts.
Weights (approximate):
  • Product Weigtht: 7.8 Lbs. (3.54 kg).
  • Shipping Weigtht: 9.1 Lbs. (4.13 kg).
