BC200

Enclosure, 12.25"H x 7.25"W x 4.5"D, Grey, 18 Gauge, Indoor

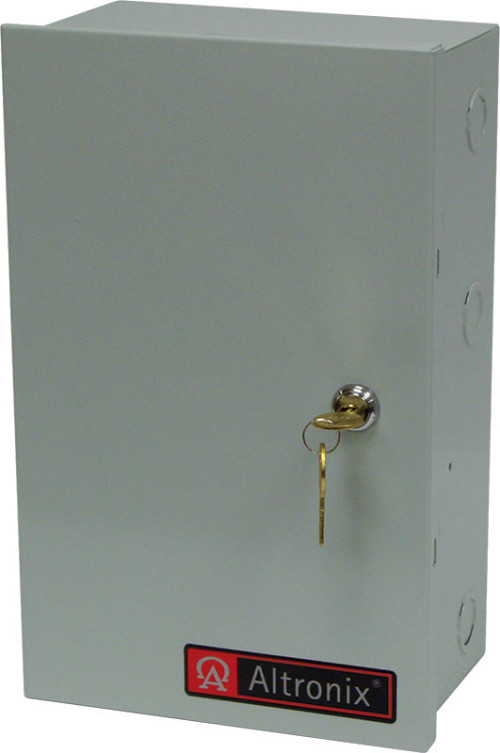

Altronix BC200 is a UL Recognized NEMA 1 Rated power supply/battery enclosure that can accommodate a wide variety of Altronix power supplies, sub-assemblies, and accessories. Altronix enclosures feature ample knockouts that are suitable for 0.5” or 0.75” conduits.

Specifications

  • Features
    • 18 Gauge steel enclosure.
    • Ample knockouts accommodating either 0.5” or 0.75” conduits for convenient access
    • Includes battery/component shelf, camlock and two self-tapping screws to secure door
    • Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.
    • NEMA 1 enclosure.

Agency Listings


UL Recognized

Dimensions & Weight

Enclosure:
  • Wall mount enclosure for indoor use.
  • Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
  • 1/2" and 3/4" combination knockouts.
Weights (approximate):
  • Product Weigtht: 6.45 Lbs. (2.93 kg).
  • Shipping Weigtht: 7.25 Lbs. (3.288 kg).
